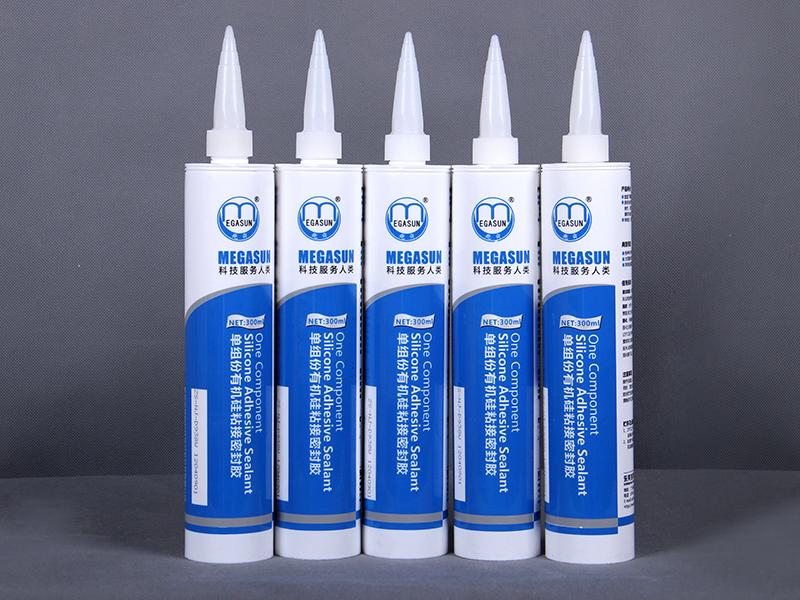

Thermally Conductive Silicone Sealant, ZS-NJ-D959W10G

ZS-NJ-D959W10G RTV Silicone Adhesive Sealant

Thermally Conductive Silicone Sealant, ZS-NJ-D959W10G
Description

The ZS-NJ-D959W10G RTV silicone adhesive sealant is a one-component dealcoholized sealant that cures at room temperature. This product features an excellent thermal conductivity and a service temperature range of -60℃～200℃. During the curing process, this product releases alcohol, thus it is ideal for non-corrosive applications for PC, copper, and other materials. It meets EU RoHS and REACH standards.

Typical applications

Fixing, heat conducting, insulating, shock-proofing and waterproof sealing electrical and electronic components

Technical specs
Uncured properties Appearance White, paste
Tack free time (min) ≤15
Cure through time (d) 3～7
Cured properties Specific gravity (g/cm3) 2.70～2.95
Hardness (Shore A) 65～80
Tensile strength (MPa) ≥1.0
Shear strength (MPa) ≥0.6
Elongation (%) ≥20
Temperature resistance (℃) -60～200
Volume resistivity (Ω·cm) ≥1.0×1012
Dielectric Strength (kV/mm) ≥13
Thermal Conductivity [W/(m·k)] ≥1.5
Note:
  • The performance data above are measured 7days after curing at 25℃ and 55% relative humidity.
  • The product cures tack free more slowly as the storage time increases.
  • Zhaoshun cannot assume responsibility for different results obtained under different conditions or caused by product improvement.
